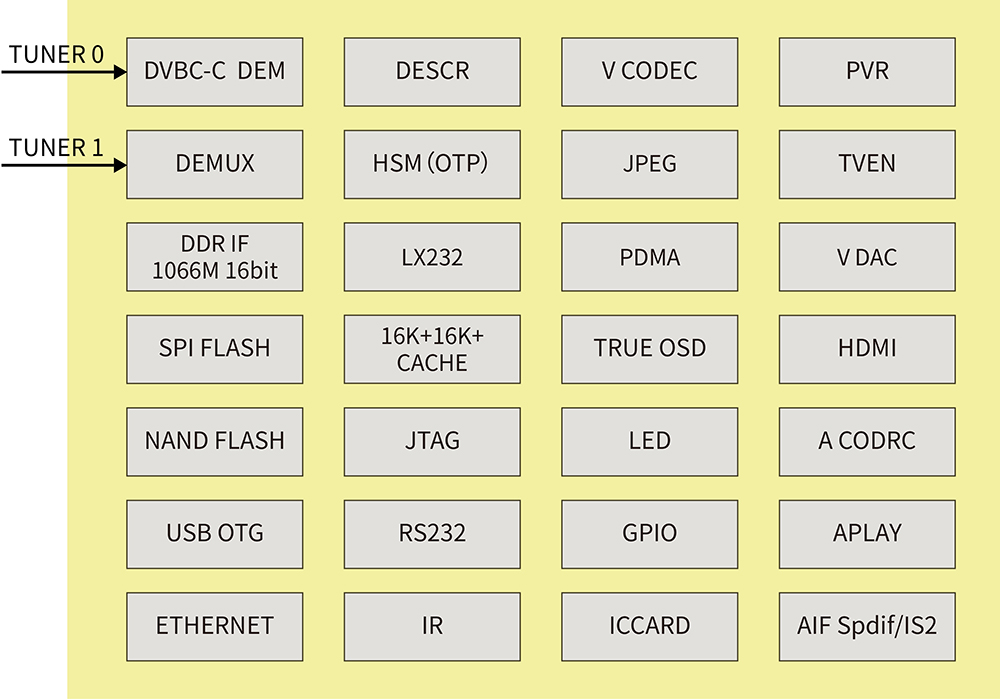

Chip Function

★ LS232 CPU (MIPS compatible)

• 32bit, 800Mhz, 16KB ICACHE + 16KB DCACHE
• On-chip SRAM: 8KB
• Little Endian
• EJTAG Debugger

★ Interrupt controller

★ Timer equipment

• Timer
• Watch Dog
• RTC

★ SPI FLASH

• 50Mhz
• 2bits read mode

★ DDR3 SDRAM

• 16bit, 1066M data rate
• Auto Refresh and Self Refresh
• 256×16Mbit

★ Peripheral interface

• General purpose IO (GPIO)
• Serial port (UART)
• Infrared receiver
• PWM
• JTAG
• SC (smart card)
• SD card
• USB 2.0/PVR
• ETHERNET MAC

★ DEMUX

• Receive 2 transport streams, the rate is up to 135Mbps
• Support 64 channels, 48 filters. Channel 0~15 can realize descrambling function and the filters can be configured dynamically
• embedded DVBC module

★ ADVANCED SECURITY

• embedded OTP
• embedded AES/3DES/SMS4 algorithm module
• security BOOT
• CW protected
• JTAG protected
• DDR obfuscation

★ VIDEO decoder

• JPEG baseline and progressive, resolution 8000x8000
• H264 HP@L4.1
• ISO/IEC 13818-2 (MPEG-2) MP@HL
• AVS JP@L6.0, AVS PLUS
• MPEG4 ASP@L5.0 (H263/xVID/VIDX compatible)
• Error detect and recovery
• Zoom-in and zoom-out

★ AUDIO DSP

• Audio: ISO/IEC 11172-3, layer 1 and 2
• IEC958/IEC937 digital audio out
• SPDIF out

★ GRAPHIC AND DISPLAY

• 5 display planes
• CLUT8, ACLUT88, RGB565, RGB888, ARGB1555, ARGB4444, ARGB6666, ARGB8888 formats.
• Alpha blending, antiflicker filters
• PPU/2D graphic accelerate
• Digital video output: compliant with CCIR 601/CCIR 656 or RGB666
• True-color logo screen

★ VIDEO OUT

• CVBS out with 10-bit DAC
• HDMI1.4 with HDCP 1.3
• Macrovision

★ LFBGA PACKAGE
