一、Product introduction

• Using wireless digital TV + multimedia + tools + remote control, create a new application design concept;
• Single multi-carrier full-mode wireless reception, sensitivity up to -84dbm, watching TV more freely;
• AVS\AVS+, H.264, MPEG-2 multi-format audio and video standard compatibility;
• Touch screen menu makes the operation more convenient and simple;
• It has digital TV functions such as EPG, Loader and CA;
• Powerful electronic picture frame functions: JPEG picture decoding, MP3 audio decoding, MPEG4 video decoding;
• Rich peripheral interface: SD/MMC, USB2.0 OTG, etc;
• Built-in lithium polymer battery, continuous playback for about 3 hours, mobile reception is more convenient.

二、Product specification

• Product size : 197.20mm 25.40mm 122.20mm
• Screens : digital screen + resistive touch screen, resolution 800*480
• Connectors for headphones, SD card, Mini USB ( Host&Device ), 12V1.5A externalpower supply
• Antenna : built-in whip antenna external antenna, SMA interface
• Weight : About 460g ( with battery weight, net weight )
• Battery : 7.4V 1900mAh lithium - ion battery standby time of 3 hours ( for receivingTV signals )
• Channel standard : GB20600-2006 ( Single / multi - carrier 330 modes )
• Source standards : AVS, and H. 264, MPEG2
• Multimedia Features：

• Decoding the picture : JPEG format, maximum resolution 8000*8000
• Audio decoding : MP3, WMA, AAC etc, 8KHz-48KHz sampling rate, bit rate 8kbps -320Kbps
• Video Decoding : Motion JPEG, and H. 264, MPEG1/2/4

• Can be used for DTMB signal test equipment

三、Product Features：

• Stylish Appearance : In your hands, put on the table is very pleasing to the eye
• Simple figure : bedroom, study, dining room, kitchen, toilet use, free space, freewireless
• Practical digital TV features : DTMB+AVS/H. 264/MPEG2+CA standards, conditionalaccess
• A variety of multimedia functions : images, audio, video and so on
• The avant-garde design concept : wireless digital TV + multimedia + tools + Remote Control, create a new application design concept

四、Support for CA

• Novel SupperTv
• Sumavision
• CTI
• ADT-MediaGate
• Changhong
• Geeya
• Topreal
• wanfa
• Gospell

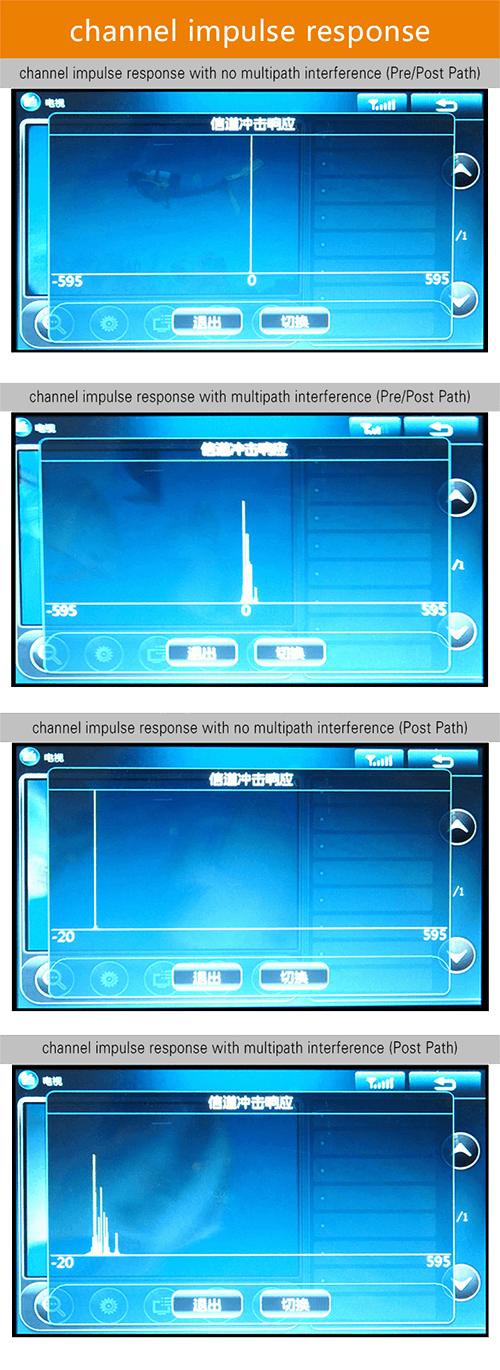

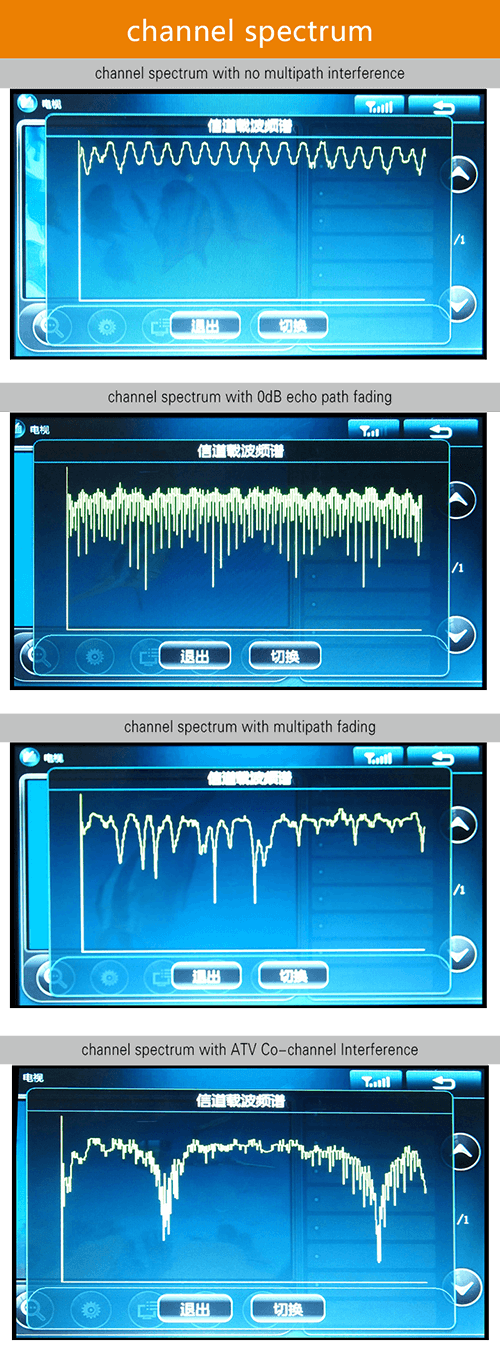

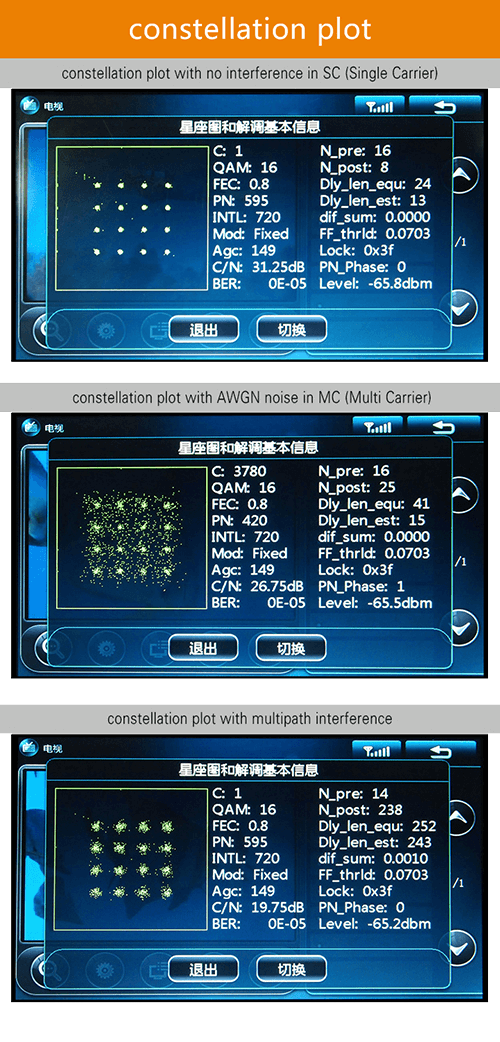

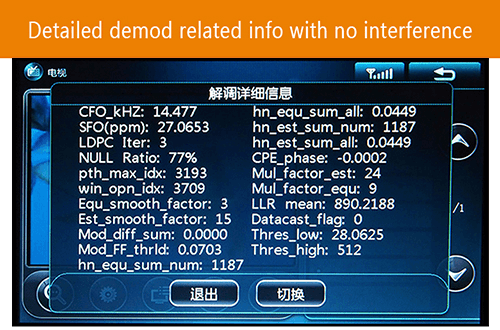

Use this TV as part of the DTMB signal testing equipment, the following test forsignal interface：
